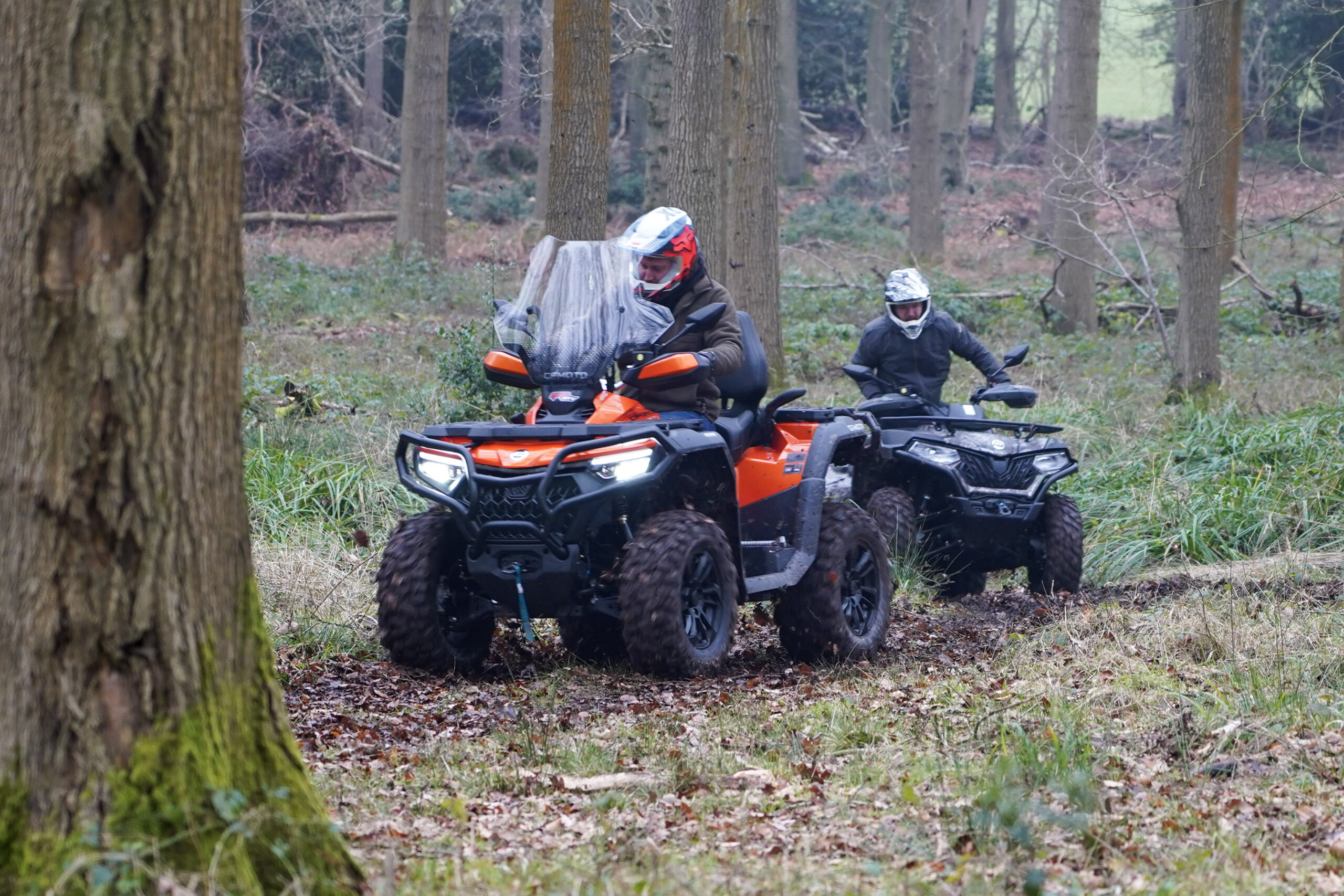

CFORCE 850 TOURING – AVAILABLE TO ORDER

• 17% tighter turning radius
• Multiple power modes
• Multiple EPS modes
• Descent Assist Control
• 3500 lb. powerful electric winch
• High-intensity LED lights (max 43000cd)
• 7” TFT display
• Anti-lock braking system (ABS)

ENGINE

• ENGINE TYPE: V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve
• DISPLACEMENT: 800cc
• MAX POWER: 75 HP @ 7500 RPM
• MAX TORQUE: 52 LB-FT @ 5500 RPM
• FUEL SYSTEM: Bosch® EFI
• COOLING SYSTEM: Liquid cooled
• DRIVE: 2WD/4WD/4WD lock
• TRANSMISSION: CVT P/R/N/H/L
• STARTER: Electric

CHASSIS

• SUSPENSION: Front: High clearance A-arm independent / Rear: Trailing arm independent
• WHEELS: Front/Rear: 14” Cast aluminum
• TIRES: Front: 26” x 8” x R14 / Rear: 26” x 10” x R14
• SHOCKS: Front/Rear: Spring pre-load adjustable, oil damped
• BRAKING:Front/Rear: Hydraulic disc with parking brake
• WHEEL TRAVEL: Front/Rear: 9” / 9”

DIMENSIONS

• SUSPENSION: Front: High clearance A-arm independent / Rear: Trailing arm independent
• WHEELS: Front/Rear: 14” Cast aluminum
• TIRES: Front: 26” x 8” x R14 / Rear: 26” x 10” x R14
• SHOCKS: Front/Rear: Spring pre-load adjustable, oil damped
• BRAKING:Front/Rear: Hydraulic disc with parking brake
• WHEEL TRAVEL: Front/Rear: 9” / 9”
