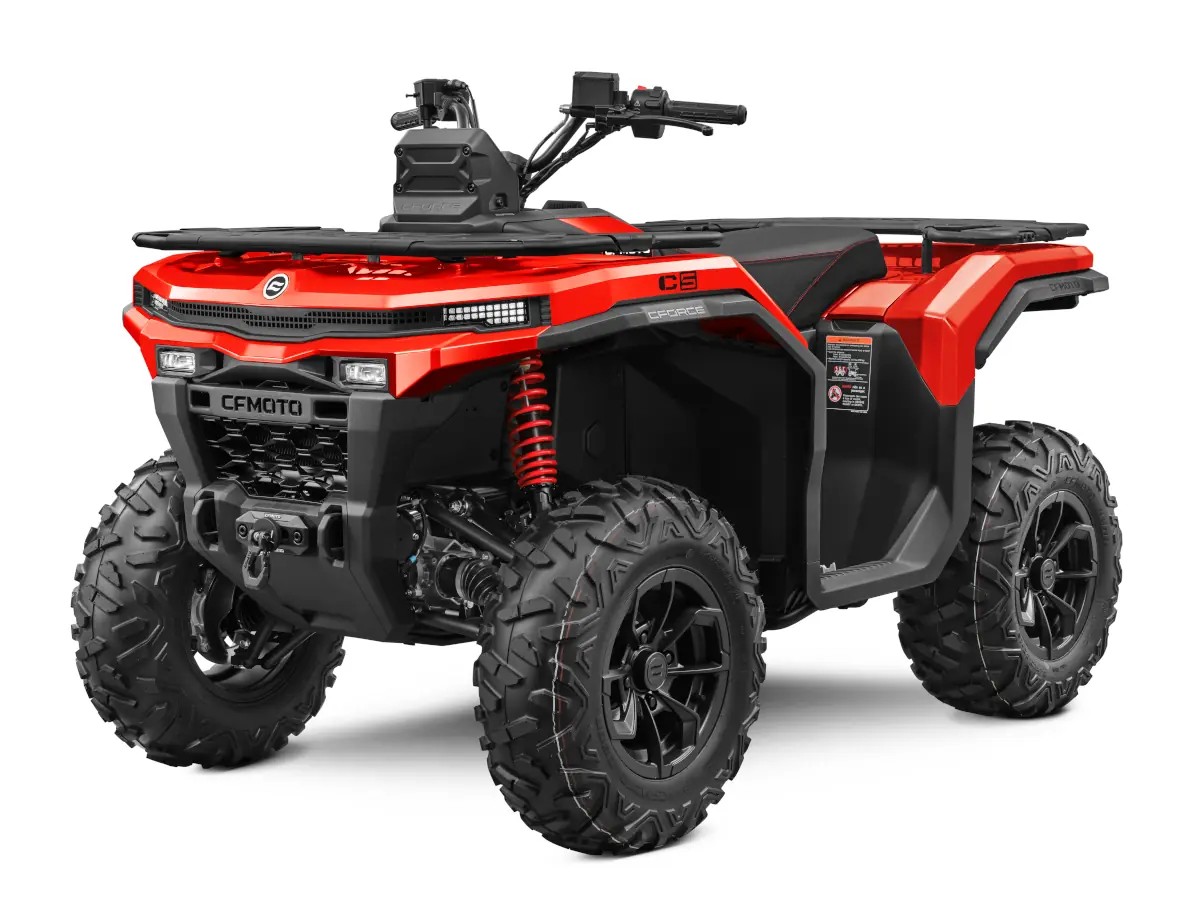

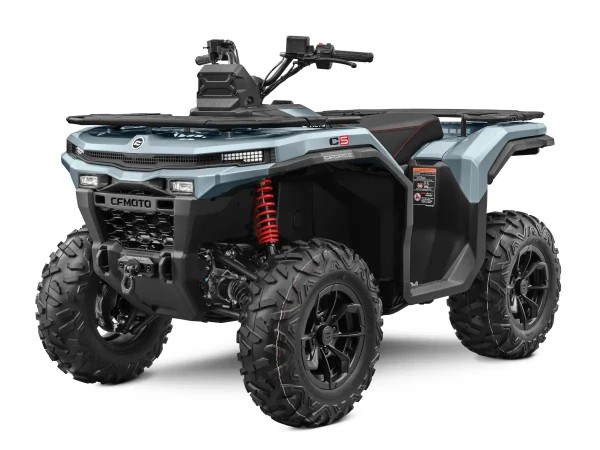

The CFORCE C5 represents the next-generation midsize ATV, purpose-built for riders seeking practical capability, everyday comfort, and user-friendly operation. Developed on the all-new 192 engine platform, the vehicles combine a lightweight chassis with a responsive single-cylinder DOHC engine and a smooth, efficient CVT transmission. Featuring stronger low-speed performance, minimised vibration, and improved thermal comfort, the C5 provides a well-balanced and reliable solution for daily work, property upkeep, and weekend rides.

ENGINE

• Engine Type: Single cylinder,4-stroke, liquid-cooled,DOHC
• Displacement: 498.6cc
• Maximum Power: 39HP
• Maximum Torque: 43.5Nm
• Fuel Supply: Bosch EFI
• Transmission: CVT

CHASSIS

• Drive: 2WD/4WD/Front differential lock
• Brake: Front/Rear:210mm disc brakes with hydraulic caliper
• Suspension:
  • Front: Arched double A-arm independent suspension,210mm
  • Rear: Double A-arm independent suspension,235mm
• Shock Absorber: Spiral spring oil shock absorber
• Rim: 12-inch cast aluminum
• Tyre:
  • Front: 24×8.00-12, optional 25×8.00-12
  • Rear: 24×10.00-12, optional 25×10.00-12

DIMENSIONS

• Length x Width x Height: 2165×1175×1265mm
• Wheelbase: 1290mm
• Minimum Ground Clearance: 275mm
• Curb Weight: 373kg
• Payload Capacity: 270kg
• Fuel Capacity: 17L
